Digital Product Passport
3GBL222267-AFC

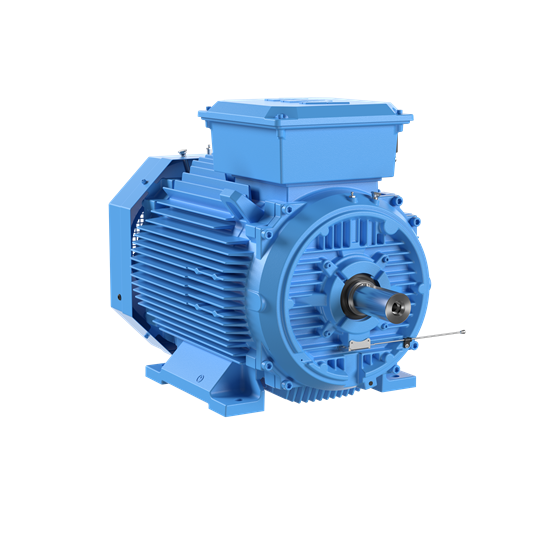

IE5 SynRM Motor
Explore the essential technical and environmental attributes of the IE5 SynRM Motors. Contributing to the broader goals of a greener future.
"Enabling the Circular Economy with Digital Product Passports."
Powered by
| Product Verification: | Authentic Product |
| Registration Status: | Registered Product |
| Deployment Region: | Stockholm Area, Sweden |
3GBL222267-AFC
Serial #: Z548533539
General Information
Product ID
3GBL222267-AFC
ABB Type Designation
M3BL 225SMF 4
Catalog Description
IE5 SynRM Motors, 55 kW, 500 V (3GBL222267-AFC)
Electrical
Connection Configuration
Y
Temperature Class Default
--
Input Voltage (Uin)
500 V
Frequency (f)
50 Hz
Output Power
55 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
F
Mechanical
Frame Material
Cast Iron
Frame Size
225
Bearing
6313/C3
Bearing NDE
6210/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Dimensions
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
821 mm
Product Net Height
553 mm
Product Net Width
435 mm
Product Net Weight
282 kg
Gross Weight
292 kg
